Southwire 14-19 SD CU THHN-THWN-MTW-AWM UL/c(UL) WHITE 500 FT

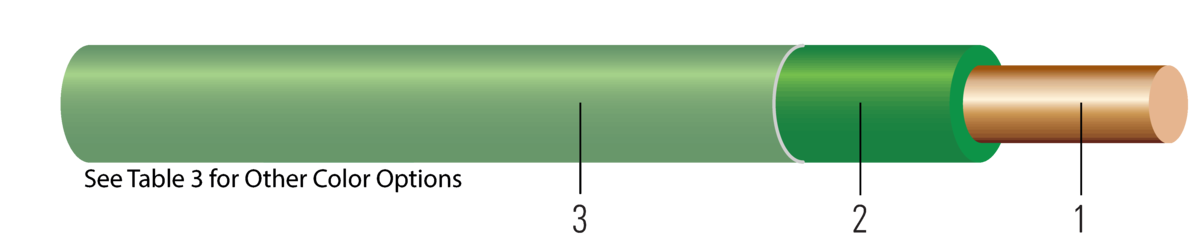

Construction

• Conductor: Solid sizes #14 AWG - #10 AWG use soft drawn annealed bare copper per ASTM B3. Stranded sizes #14 AWG - #10 AWG use Class C combination-unilay soft drawn annealed bare copper per ASTM B787.
• Insulation: Heat and moisture resistant PVC
• Sheath: Nylon

Standards & References

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
• UL 83 Thermoplastic Insulated Wires and Cables
• UL 758 Standard for Appliance Wiring Material
• UL 1063 Machine Tool Wiring (MTW)
• CSA C22.2 No. 75 Thermoplastic Insulated Wires and Cables
• ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
• Federal Specification A-A-59544
• NMX-J-010-ANCE Thermoplastic insulated wires and cables
• NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
• NEMA 70901-2-2024 Make It American Compliance with Domestic Preference Requirements Pt. 2 Wire & Cable

Application & Features

APPLICATIONSouthwire THHN copper conductors are primarily used in conduit for branch circuits in commercial or industrial applications as specified in the National Electrical Code® and other applicable codes and standards. Voltage for all applications is 600 volts. These conductors have multiple ratings depending upon the product application. Allowable temperatures are as follows:

• THHN or T90 Nylon- Dry locations not to exceed 90°C
• THWN- Wet locations not to exceed 75°C or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil
• TWN75- Wet locations not to exceed 75°C
• MTW- Wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
• AWM- Dry locations not to exceed 105°C only when rated and used as appliance wiring material

FEATURES

• Gasoline and Oil Resistant II
• VW-1 Sizes 14 through 10 AWG
• FT1 All Sizes
• AWM- Sizes 14 through 10 AWG
• MTW- Stranded Constructions Only
• RoHS Compliant
