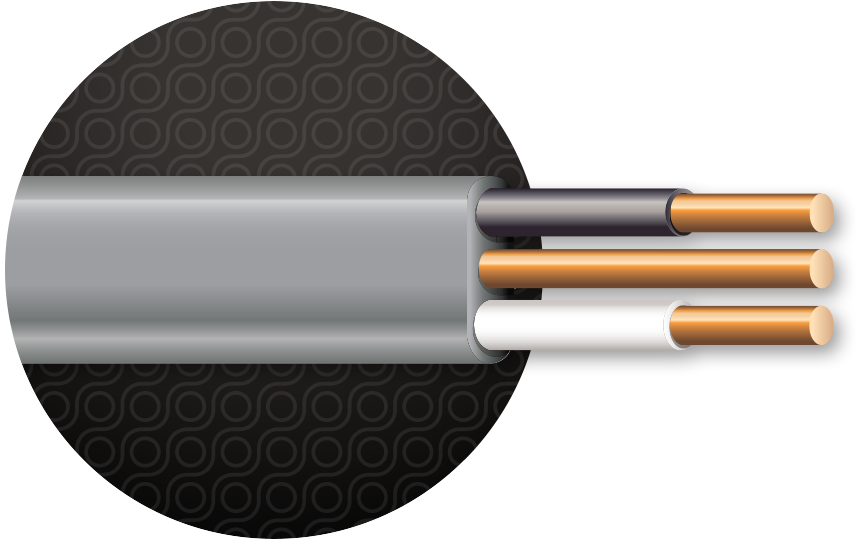

CerroWire CerroMax™ UF-B Underground Feeder/Branch Cable with Nonmetallic Sheath

Applications

For use underground as a feeder or branch circuit cable where provided with overcurrent protection of the rated ampacity as specified by the NEC^®. Direct burial in the earth is permitted. May be installed as interior wiring in wet, dry, or corrosive locations as specified by the NEC May be installed as nonmetallic-sheathed cable as specified in NEC Section 340.10(4). May be installed in locations with temperatures up to 90°C but with the ampacity limited to that of 60°C conductors.

Conductors

• Solid conductors
• Soft, uncoated copper per ASTM-B3
• Stranded conductors
• Uncoated copper per ASTM-B3 and ASTM-B
• Grounded Conductors
• Soft, uncoated copper per ASTM-B3

Insulation

Color-coded PVC (polyvinyl chloride) rated 90°C dry with nylon (polyamide) covering.

Jacket

Gray PVC (polyvinyl chloride) jacket applied over and around the insulated and bare conductors

Industry Standards

• UL 83: E15119
• UL 493: E26403
• ASTM B3
• ASTM B8
• Federal Specification A-A-59544
• NFPA70: National Electrical Code^®
  RoHS Compliant

*It is the sole responsibility of the end user to determine suitability of this product for its intended end use and application.

Assembly

Insulated conductors are laid parallel with a bare grounding conductor.
