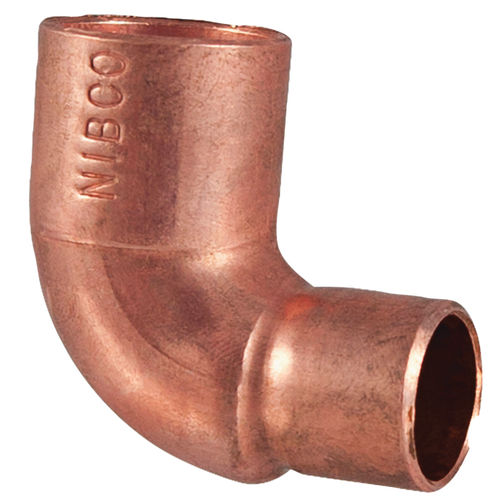

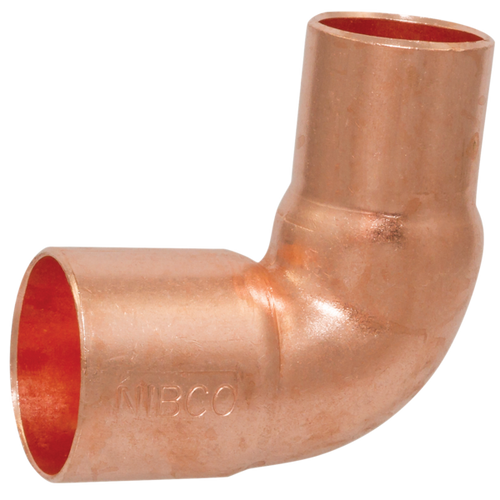

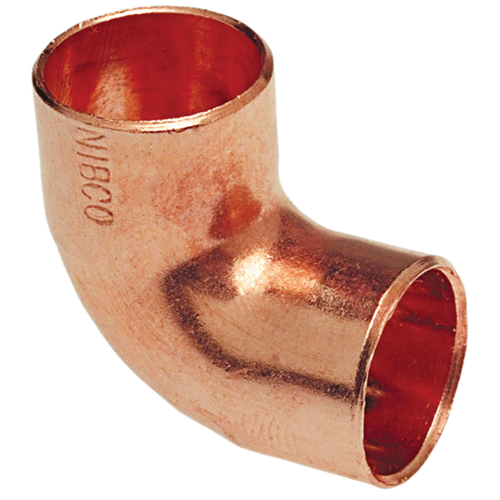

Nibco 90° Elbow Close Rough C x C - Wrot

Nibco

+ -

The NIBCO® lead-free* wrot copper solder pressure 90-degree close rough elbow is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options also include cleaned and bagged for oxygen service (medical gas).

  • Lead-free
  • Dezincification resistant
  • ASTM B75 Alloy C12200
  • NSF/ANSI/CAN-61 and 372
  • Material and workmanship per ASME B16.22
  • Material, workmanship and dimensions per MSS SP-104
  • Material, workmanship and dimensions per MSS SP-109 (5" to 8")
  • NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
  • UL 207 Recognized to 700 PSI (select diameters)
SIZE DESCRIPTION UPC NIBCO NO. CAD/BIM
1/8 in. x 1/8 in. 607 1/8 CXC 90 ELBOW WROT 039923312600 9055200 CAD
1/8 in. x 1/8 in. 607-CB 1/8 CXC 90 ELBOW WROT 039923303172 9055200CB CAD
1/4 in. x 1/4 in. 607 1/4 CXC 90 ELBOW WROT 039923312624 9055250 CAD
1/4 in. x 1/4 in. 607-CB 1/4 CXC 90 ELBOW WROT 039923303196 9055250CB CAD
3/8 in. x 3/8 in. 607 3/8 CXC 90 ELBOW WROT 039923312662 9055350 CAD
3/8 in. x 3/8 in. 607-CB 3/8 CXC 90 ELBOW WROT 039923303219 9055350CB CAD
1/2 in. x 1/2 in. 607 1/2 CXC 90 ELBOW WROT 039923312723 9055450 CAD
1/2 in. x 1/2 in. 607-CB 1/2 CXC 90 ELBOW WROT 039923303226 9055450CB CAD
1/2 in. x 3/8 in. 607R 1/2X3/8 CXC 90 ELBOW WROT 039923312747 9055500 CAD
1/2 in. x 3/8 in. 607R-CB 1/2X3/8 CXC 90 ELBOW WROT 039923303233 9055500CB CAD
5/8 in. x 3/8 in. 607R 5/8X3/8 CXC 90 ELBOW WROT 039923415493 9055545 CAD
3/4 in. x 3/4 in. 607 3/4 CXC 90 ELBOW WROT 039923312884 9055600 CAD
3/4 in. x 3/4 in. 607-CB 3/4 CXC 90 ELBOW WROT 039923303257 9055600CB CAD
3/4 in. x 5/8 in. 607R 3/4X5/8 CXC 90 ELBOW WROT 039923415431 9055625 CAD
3/4 in. x 1/2 in. 607R 3/4X1/2 CXC 90 ELBOW WROT 039923312907 9055650 CAD
3/4 in. x 1/2 in. 607R-CB 3/4X1/2 CXC 90 ELBOW WROT 039923303271 9055650CB CAD
7/8 in. x 7/8 in. 607 7/8 CXC 90 ELBOW WROT 039923300188 9055700 CAD
1 in. x 1 in. 607 1 CXC 90 ELBOW WROT 039923312969 9055750 CAD
1 in. x 1 in. 607-CB 1 CXC 90 ELBOW WROT 039923303288 9055750CB CAD
1 in. x 3/4 in. 607R 1X3/4 CXC 90 ELBOW WROT 039923312983 9055800 CAD
1 in. x 3/4 in. 607R-CB 1X3/4 CXC 90 ELBOW WROT 039923303295 9055800CB CAD
1 in. x 1/2 in. 607R 1X1/2 CXC 90 ELBOW WROT 039923393852 9055870 CAD
1 in. x 1/2 in. 607R-CB 1X1/2 CXC 90 ELBOW WROT 039923393906 9055870CB CAD
1-1/4 in. x 1-1/4 in. 607 11/4 CXC 90 ELBOW WROT 039923078599 9055950 CAD
1-1/4 in. x 1-1/4 in. 607-CB 11/4 CXC 90 ELBOW WROT 039923303318 9055950CB CAD
1-1/4 in. x 1 in. 607R 11/4X1 CXC 90 ELBOW WROT 039923393869 9056110 CAD
1-1/4 in. x 1 in. 607R-CB 11/4X1 CXC 90 ELBOW WROT 039923393883 9056110CB CAD
1-1/2 in. x 1-1/2 in. 607 11/2 CXC 90 ELBOW WROT 039923078711 9056150 CAD
1-1/2 in. x 1-1/2 in. 607-CB 11/2 CXC 90 ELBOW WROT 039923303325 9056150CB CAD
1-1/2 in. x 1-1/4 in. 607R 11/2X11/4 CXC 90 ELBOW WROT 039923313164 9056200 CAD
1-1/2 in. x 1-1/4 in. 607R-CB 11/2X11/4 CXC 90 ELBOW WROT 039923303332 9056200CB CAD
2 in. x 2 in. 607 2 CXC 90 ELBOW WROT 039923078704 9056400 CAD
2 in. x 2 in. 607-CB 2 CXC 90 ELBOW WROT 039923303349 9056400CB CAD
2 in. x 1-1/2 in. 607R 2X11/2 CXC 90 ELBOW WROT 039923313249 9056450 CAD
2 in. x 1-1/2 in. 607R-CB 2X11/2 CXC 90 ELBOW WROT 039923303356 9056450CB CAD
3/8 in. x 1/4 in. 607R 3/8X1/4 90 DEG ELBOW WROT 039923415486 9056465 CAD
2-1/2 in. x 2-1/2 in. 607 21/2 CXC 90 ELBOW WROT 039923313300 9056650 CAD
2-1/2 in. x 2-1/2 in. 607-CB 21/2 CXC 90 ELBOW WROT 039923303370 9056650CB CAD
3 in. x 3 in. 607 3 CXC 90 ELBOW WROT 039923313386 9056900 CAD
3 in. x 3 in. 607-CB 3 CXC 90 ELBOW WROT 039923303394 9056900CB CAD
3-1/2 in. x 3-1/2 in. 607 31/2 CXC 90 ELBOW WROT 039923313461 9057100 CAD
4 in. x 4 in. 607 4 CXC 90 ELBOW WROT 039923313522 9057200 CAD
4 in. x 4 in. 607-CB 4 CXC 90 ELBOW WROT 039923303400 9057200CB CAD
5 in. x 5 in. 607 5 CXC 90 ELBOW WROT 039923313607 9057300 CAD
5 in. x 5 in. 607-CB 5 CXC 90 ELBOW WROT 039923303417 9057300CB CAD
6 in. x 6 in. 607 6 CXC 90 ELBOW WROT 039923313683 9057400 CAD
6 in. x 6 in. 607-CB 6 CXC 90 ELBOW WROT 039923303431 9057400CB CAD
8 in. x 8 in. 607 8 CXC 90 ELBOW WROT 039923313713 9057500 CAD
8 in. x 8 in. 607-CB 8 CXC 90 ELBOW WROT 039923303455 9057500CB CAD
