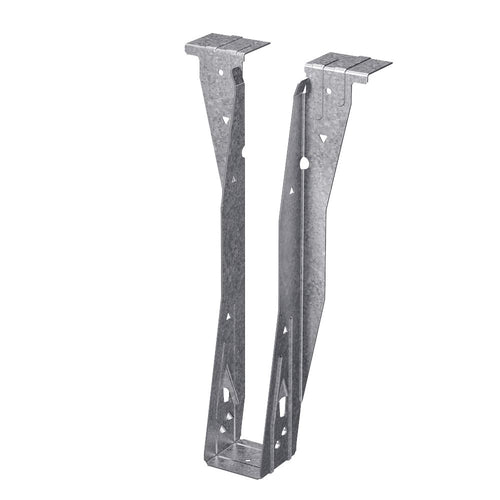

Simpson Strong ITS I-Joist Top-Flange Hanger with Snap-In Bottom Flange

Key Features

• Cost-effective hanger that installs quickly with a small number of nails
• Features additional triangle holes for additional uplift
• Features optional fastening with PAT for steel applications/header

Material

• 18 gauge

Finish

• Galvanized

Installation

• Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
• See product-specific installation drawings.
• No joist nailing required for standard I-joist installation without web stiffeners. When hanger is used to support I-joists with web stiffeners or rectangular SCL member (2) 0.148" x 1 1/2" nails must be installed into optional triangle joist nail holes for standard installation values.
• Optional triangle nail holes may be used for additional load. See allowable load tables.
• For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.

Allowable Loads

• Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
• For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
